S series oil immersed transformer

Oil Immersed Transformers for Outdoor and Industrial Distribution

GOANEN manufactures S13, S14 and S22 oil immersed transformers for factories, industrial parks, outdoor distribution networks, utility projects and continuous power supply environments. The product line supports project-based voltage, capacity, cooling and protection requirements.

Contact GOANEN TeamProduct Center
S13S14S22
Product profile

Outdoor transformer series for distribution networks and industrial power systems.

GOANEN oil immersed transformers are used in power distribution systems that require stable operation, effective heat dissipation and outdoor installation adaptability. The series can be supplied with sealed tank structure, radiators, conservator or project-specific configuration according to order requirements.

  • Applicable series: S13, S14, S22 and project configurations
  • Common application: outdoor distribution, industrial plants, utility networks and parks
  • Structure support: tank, radiator, terminals, oil level and protection accessories
  • Delivery support: product photos, nameplate, packing photos and technical files

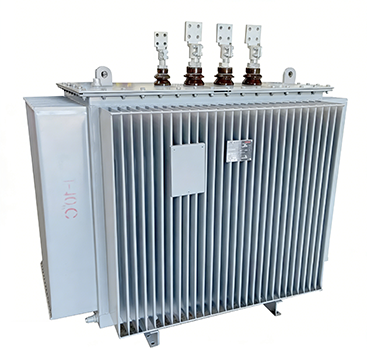

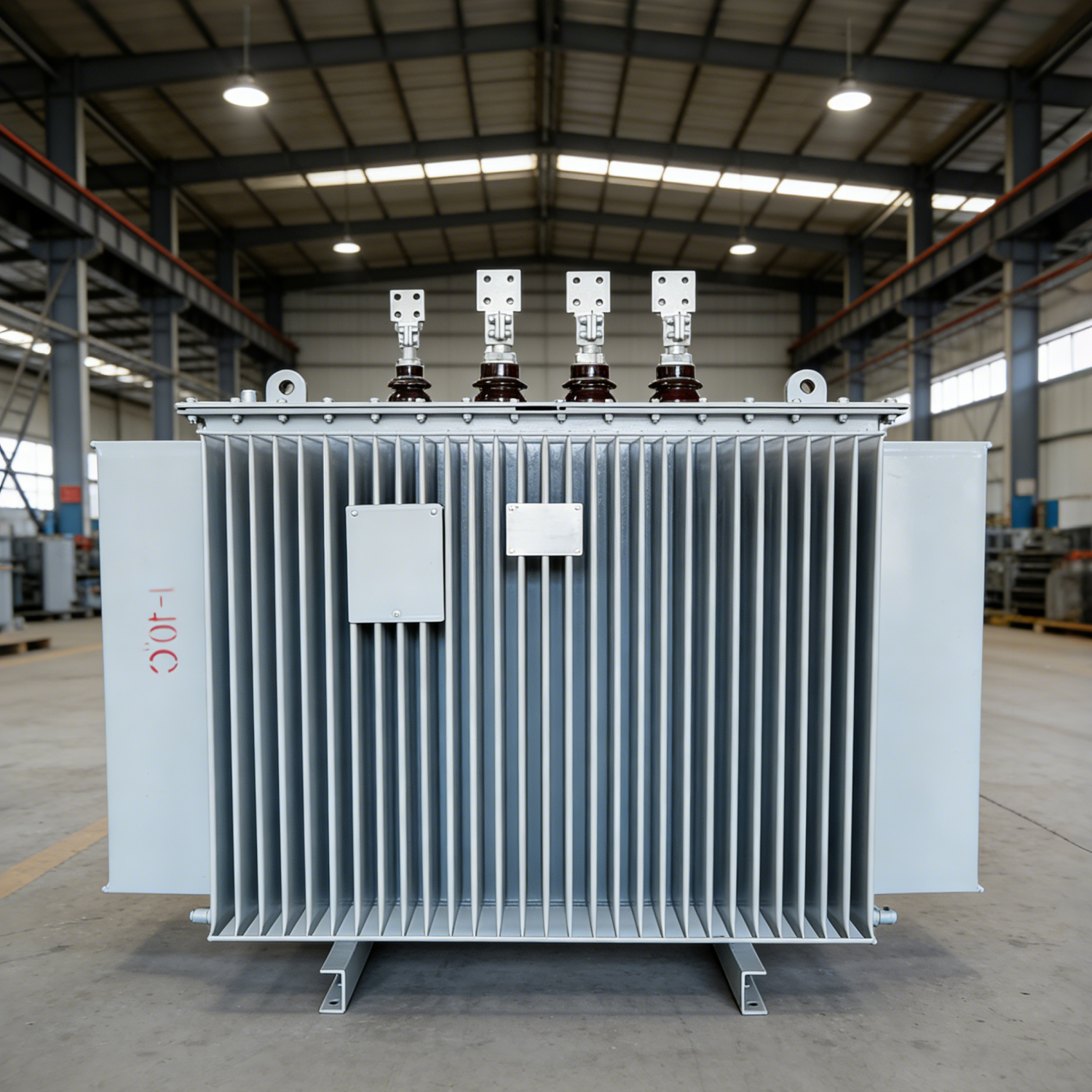

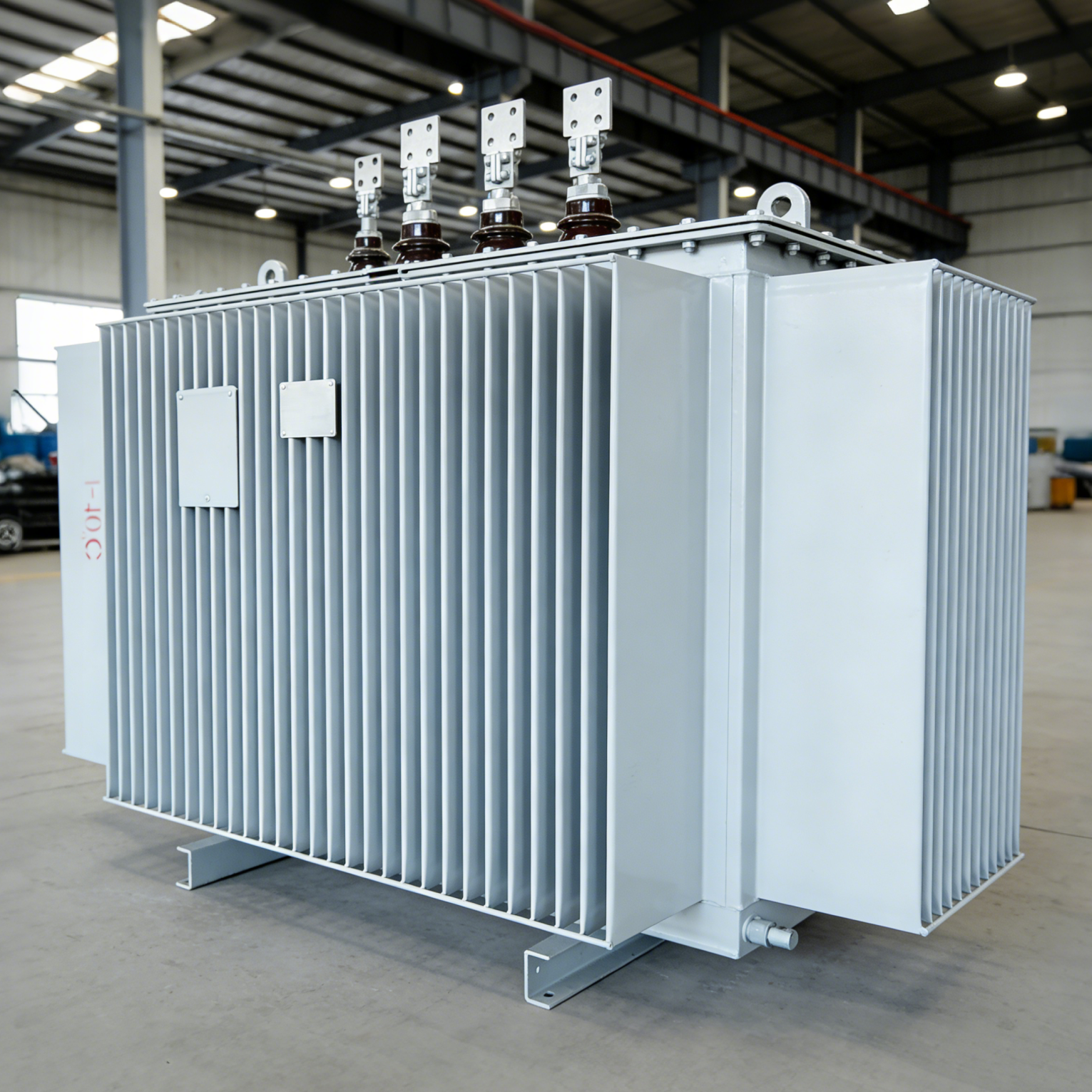

GOANEN oil immersed transformer Oil immersed transformer detail Oil immersed transformer tank structure
Technical information

Oil immersed transformer parameters and project configuration.

GOANEN prepares oil immersed transformer supply around rated voltage, rated capacity, cooling method, installation environment, protection requirements and project documents. Outdoor projects can also include packing and loading photo support.

Product seriesS13 / S14 / S22 oil immersed transformer
Rated voltage10kV, 11kV and project voltage options
Rated capacityDistribution and industrial capacities confirmed by project load
Cooling methodOil natural air natural and project-based configuration
InstallationOutdoor distribution point, industrial site, utility network
AccessoriesTank, radiator, oil level indicator, terminals, nameplate and packing files
Parameter data images

Technical data display for oil immersed transformer projects.

Parameter images are included for customers who need to review product documentation, capacity ranges, outline information and project-related technical references.

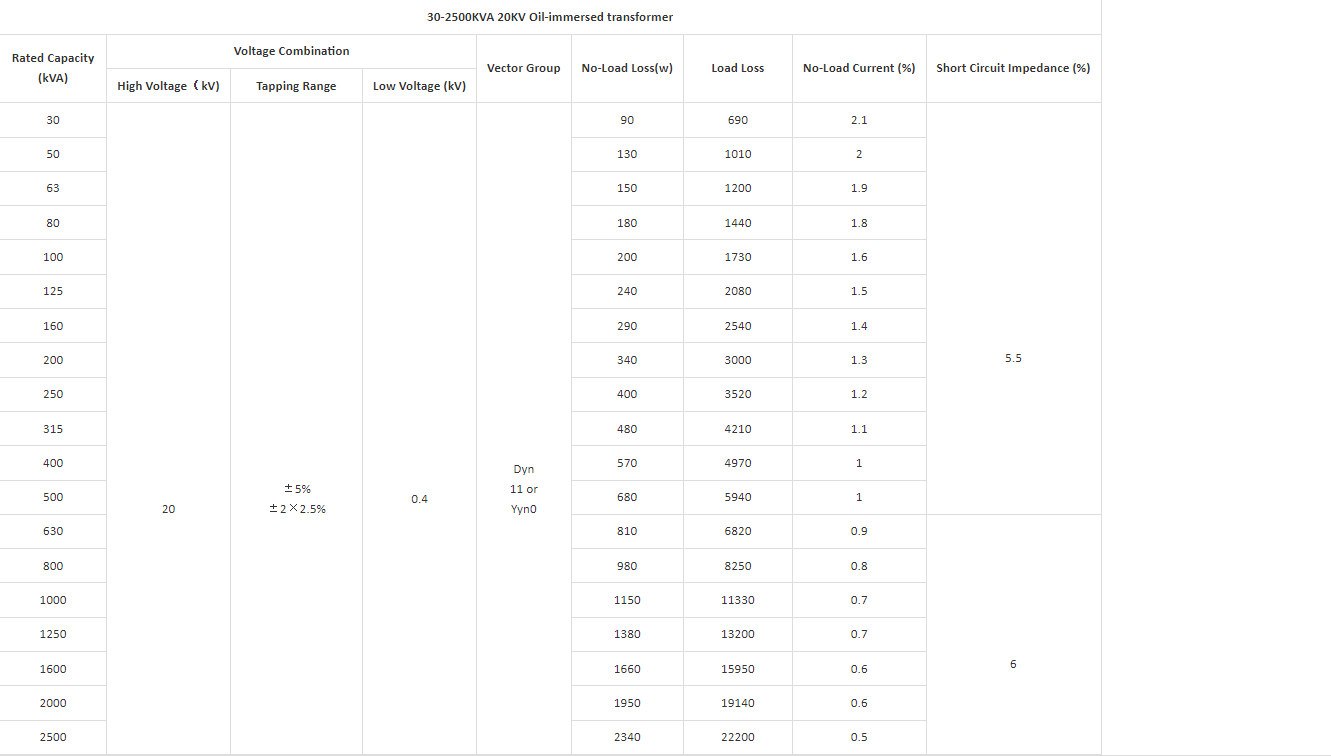

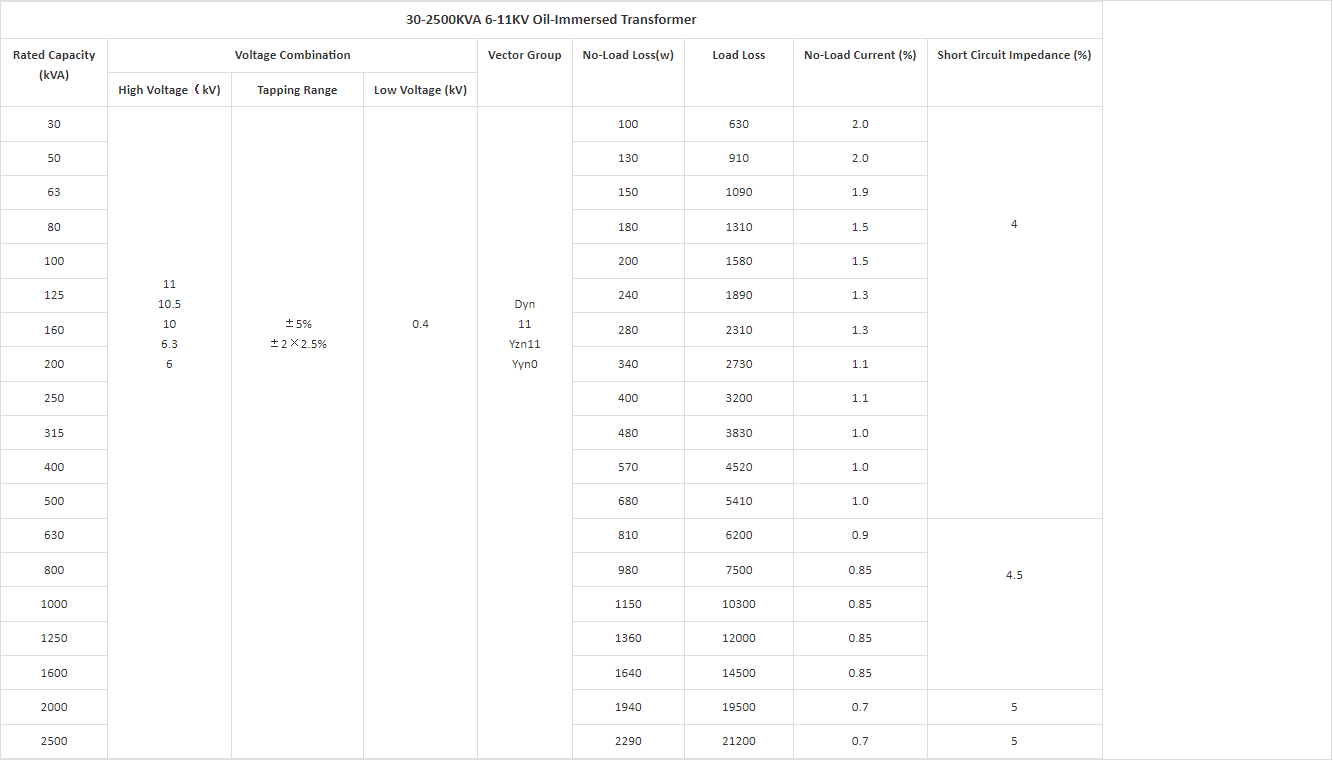

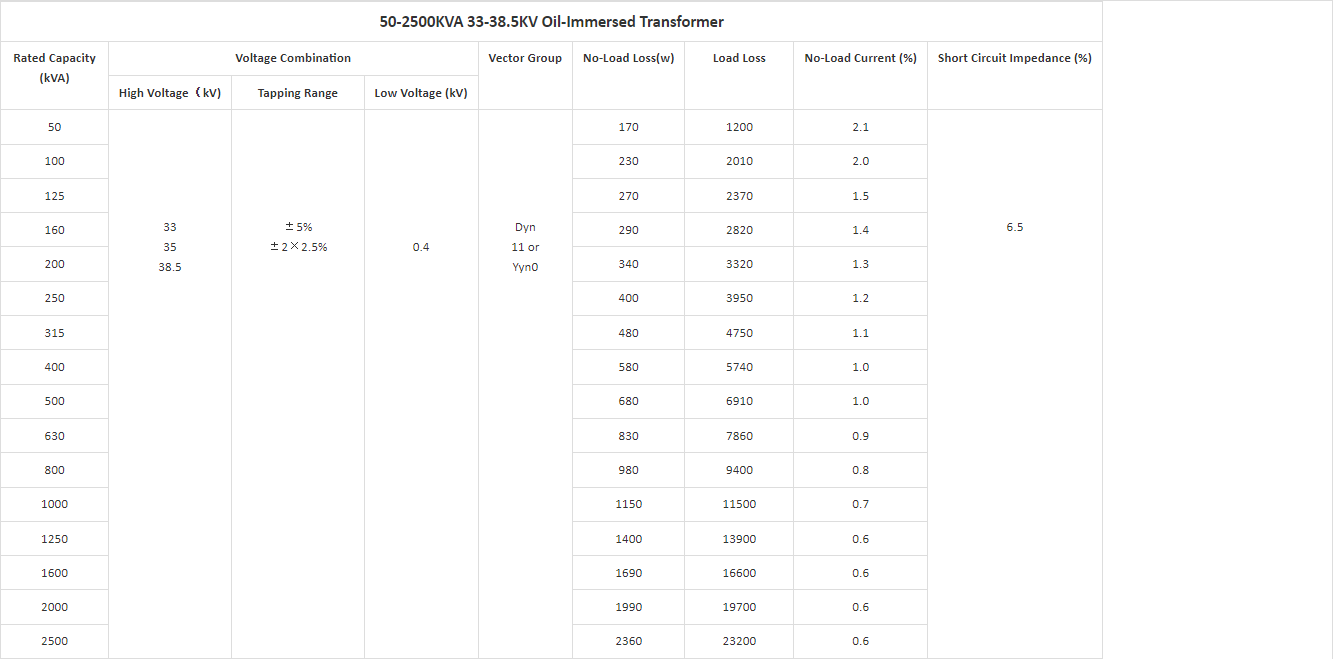

Oil immersed transformer parameter data table 1 Oil immersed transformer parameter data table 2 Oil immersed transformer parameter data table 3
Factory production

Oil immersed transformer supply from production to shipment preparation.

The factory manages transformer assembly, inspection, finished product storage, packing and loading preparation. These steps help formal projects keep clearer records from workshop to site delivery.

GOANEN production workshop

Production Equipment

Production equipment supports transformer and distribution equipment manufacturing.

GOANEN finished products storage

Finished Storage

Finished transformers are arranged for packing, document preparation and delivery planning.

GOANEN loading trucks

Loading Support

GOANEN provides organized loading coordination and shipment photo support for project orders.
